Colorado Original Rafts 14ft
Colorado Original Rafts 14ft
We are the only manufacturer of quality white water and fishing rafts based in the Great State of Colorado.
Colorado Original Rafts are hand-made by skilled craftsmen using a combination of the highest quality PVC fabrics. We make our boats from 1.2mm 52oz German made Hytex PVC, which is thicker and more durable than most of our competitors.

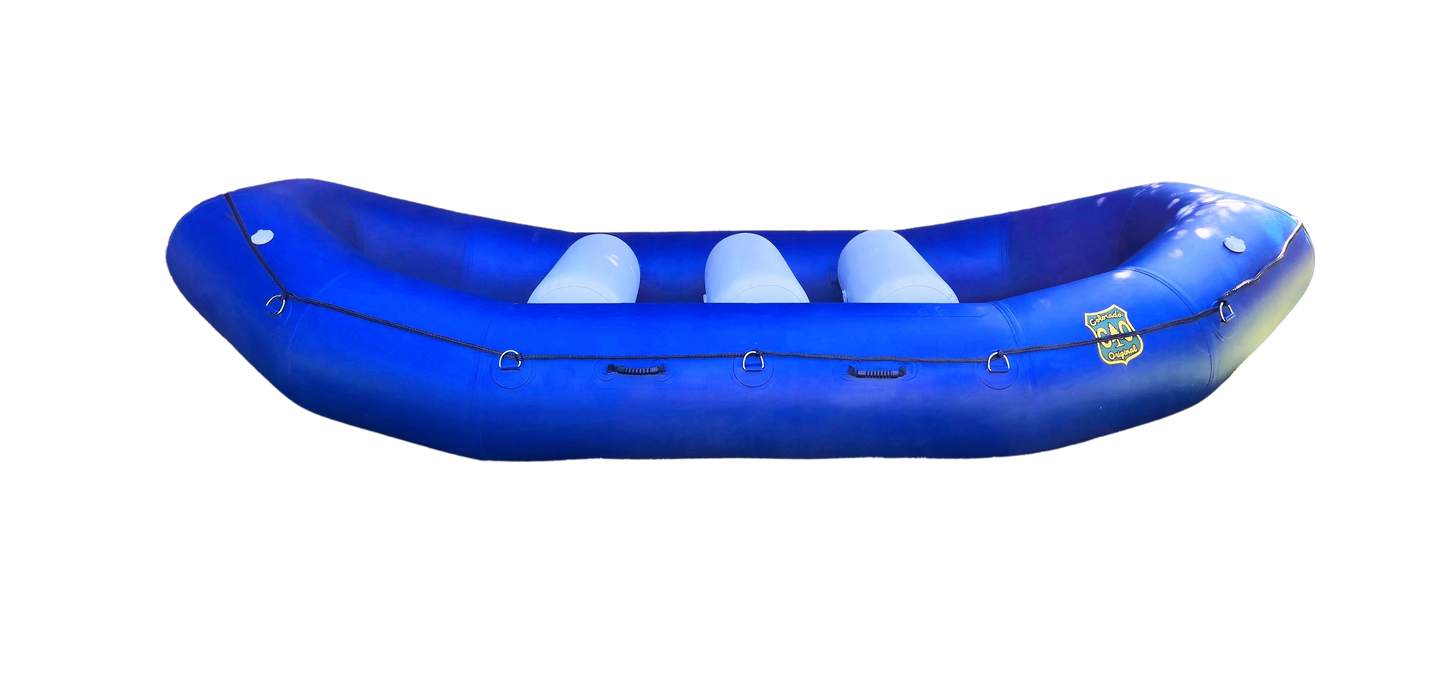

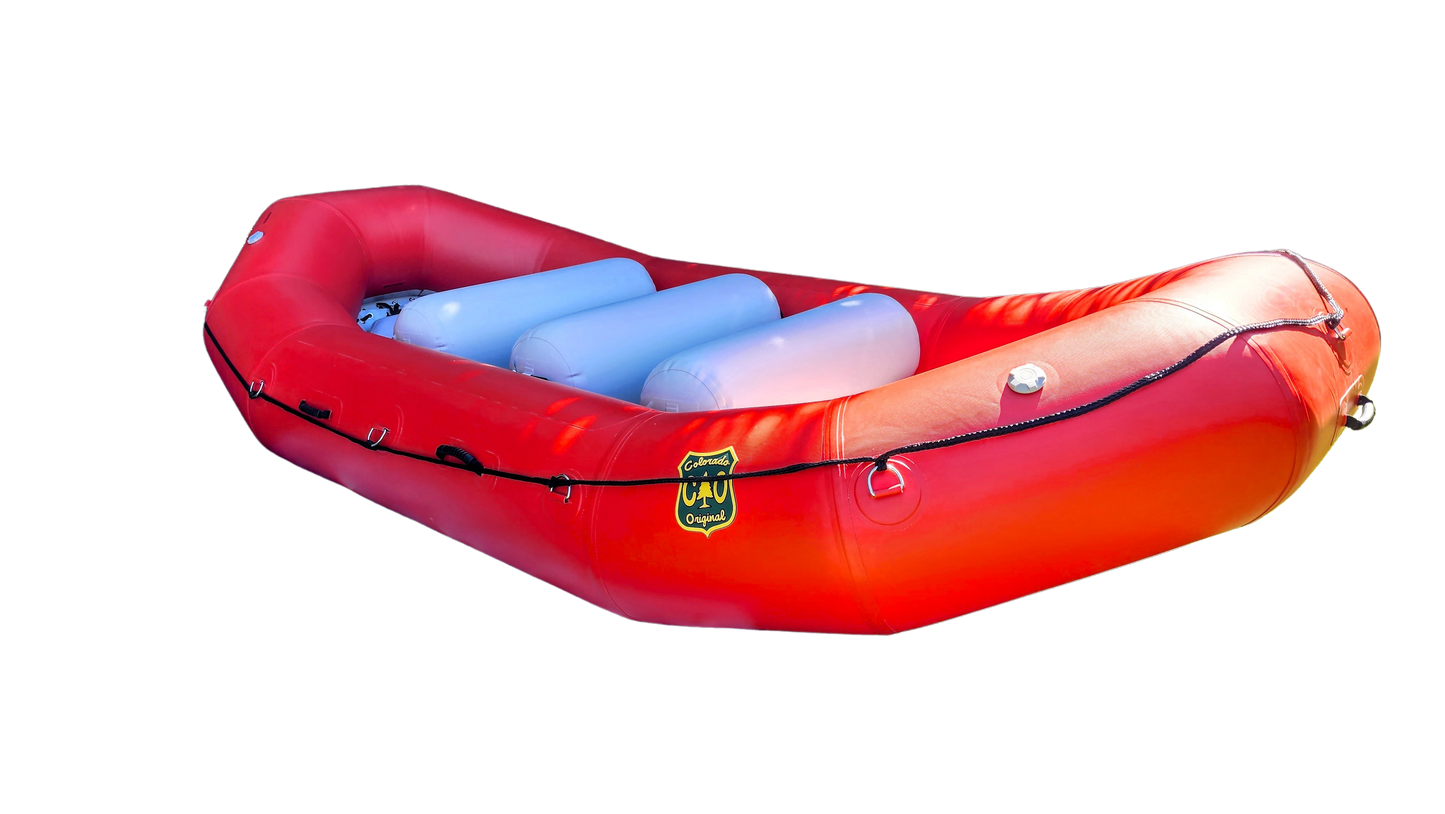

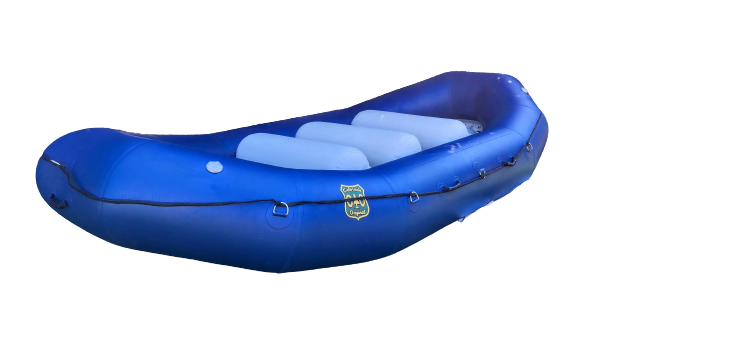

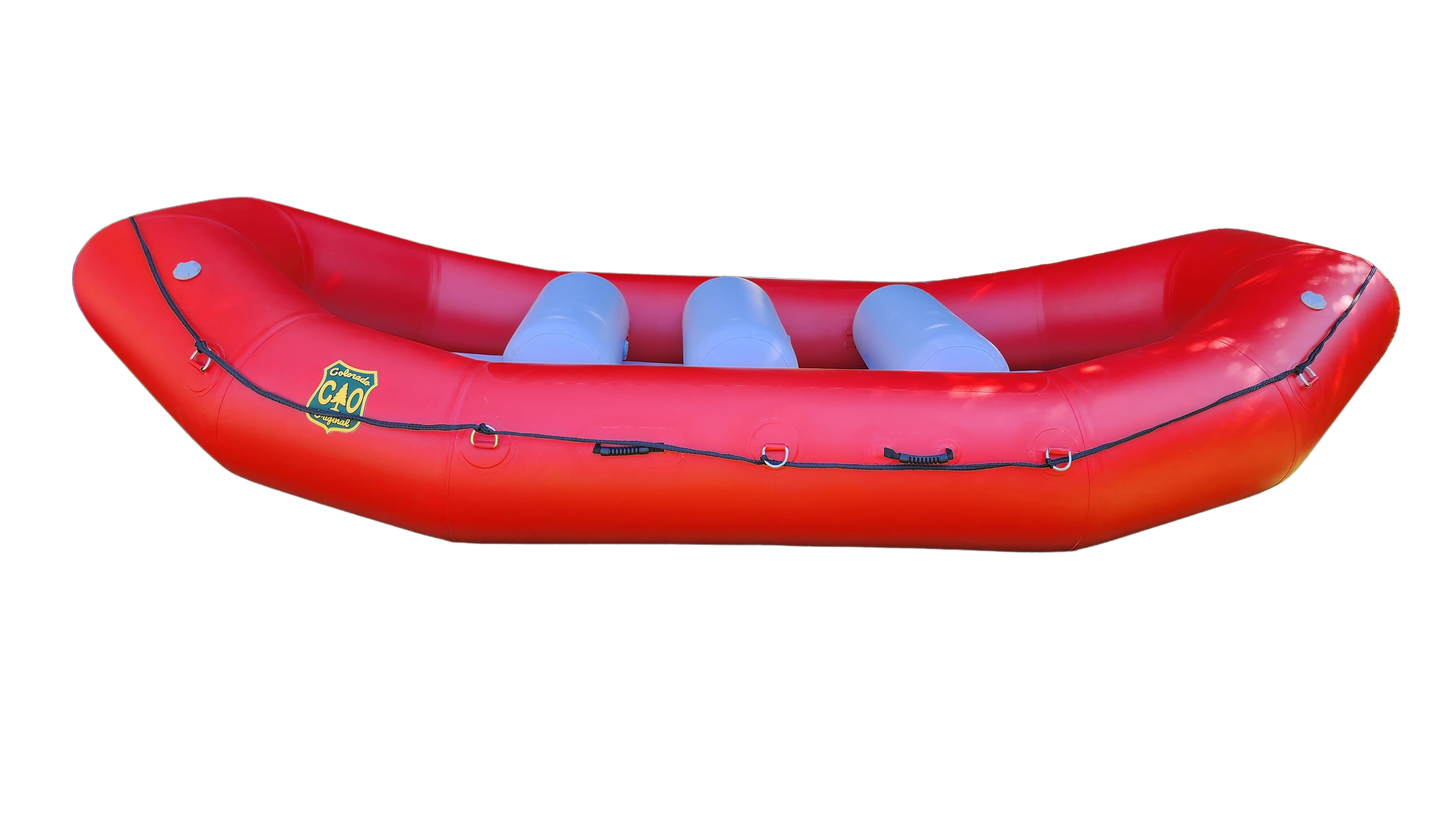

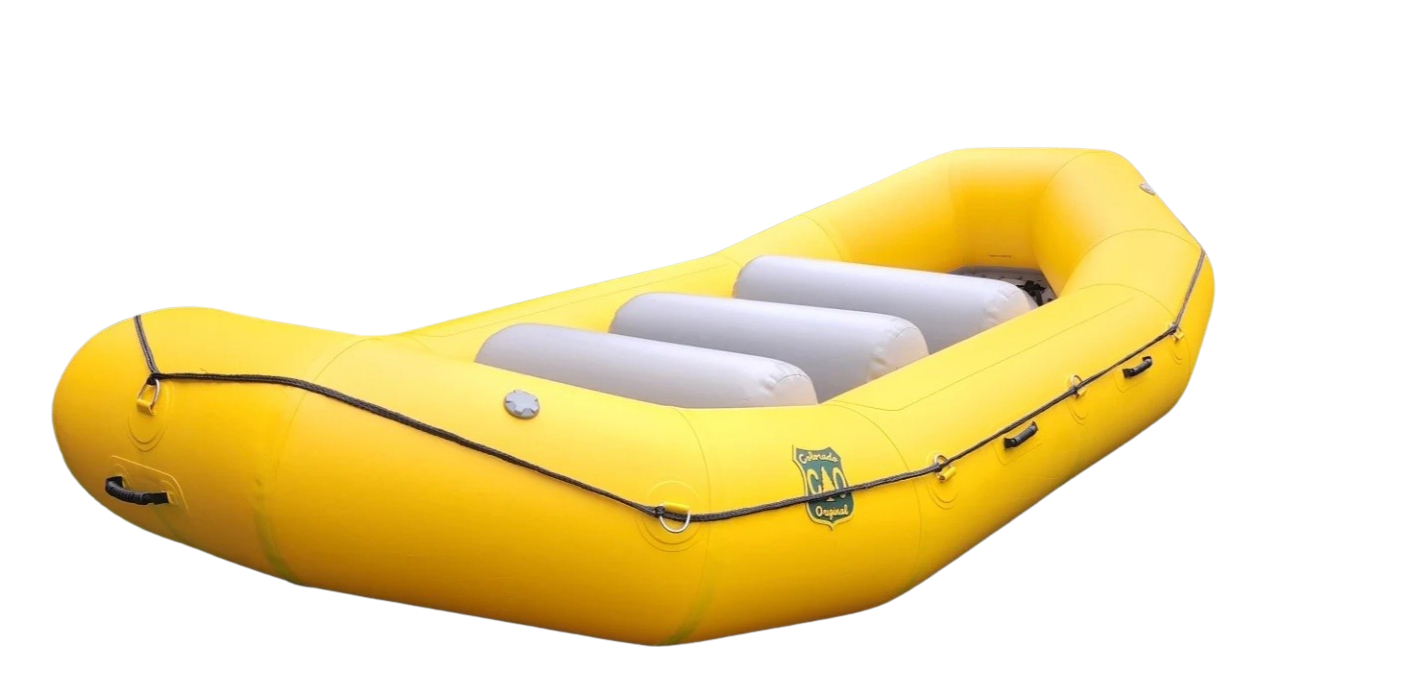

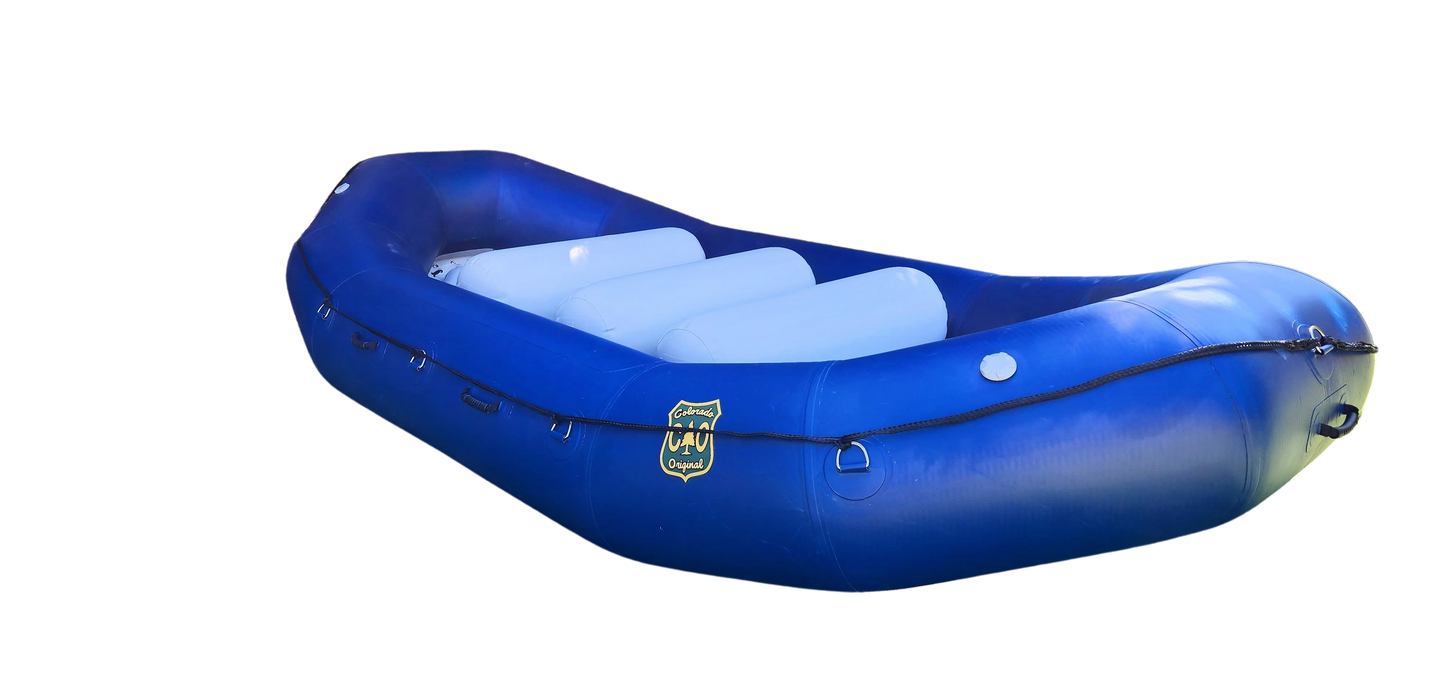

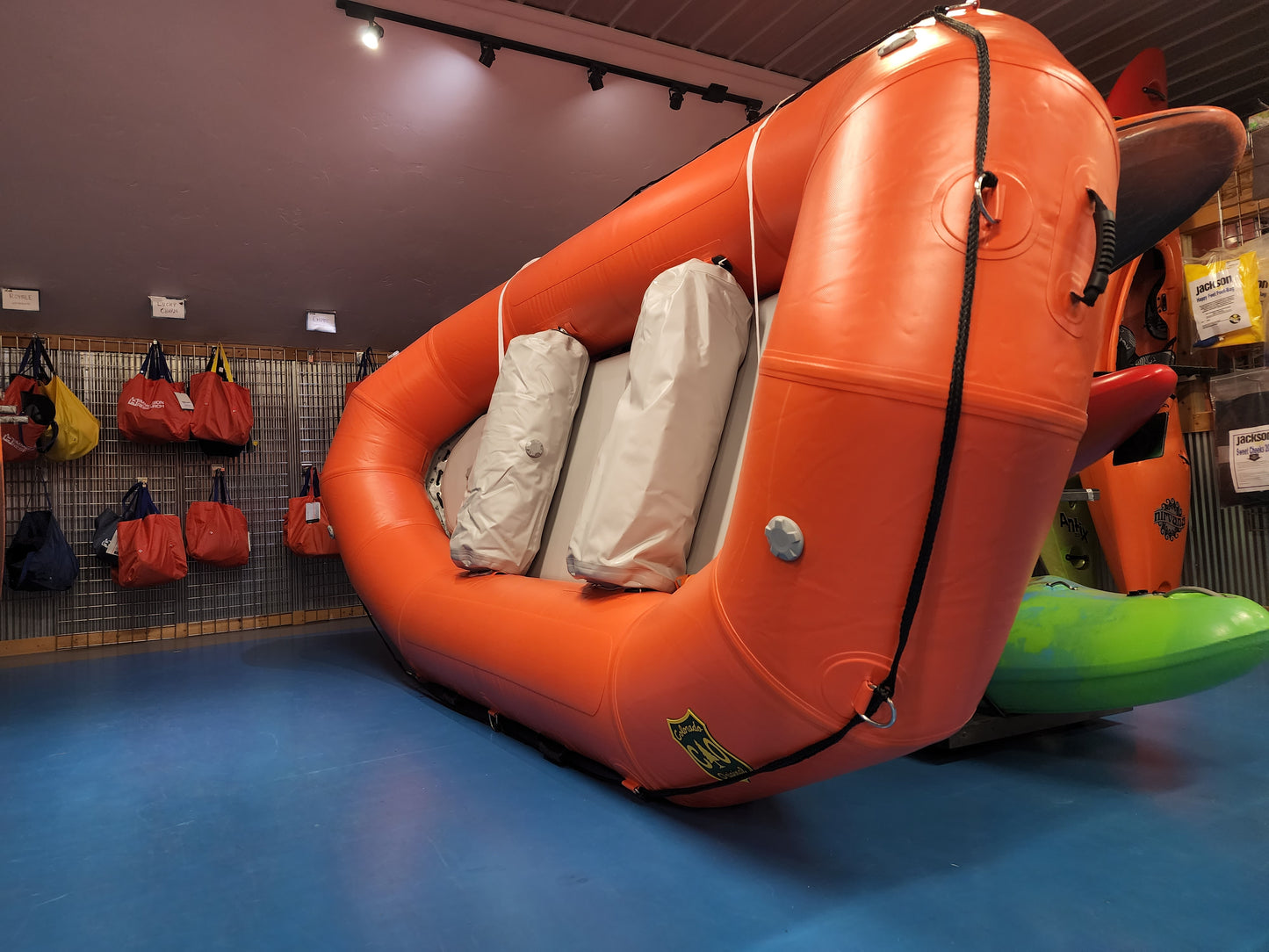

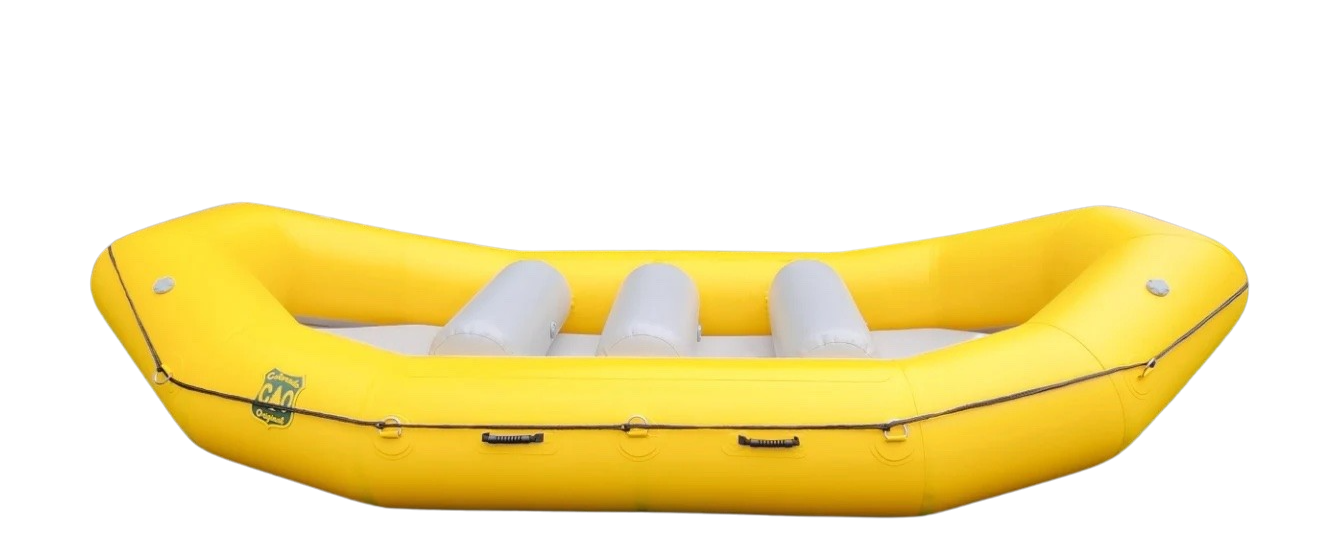

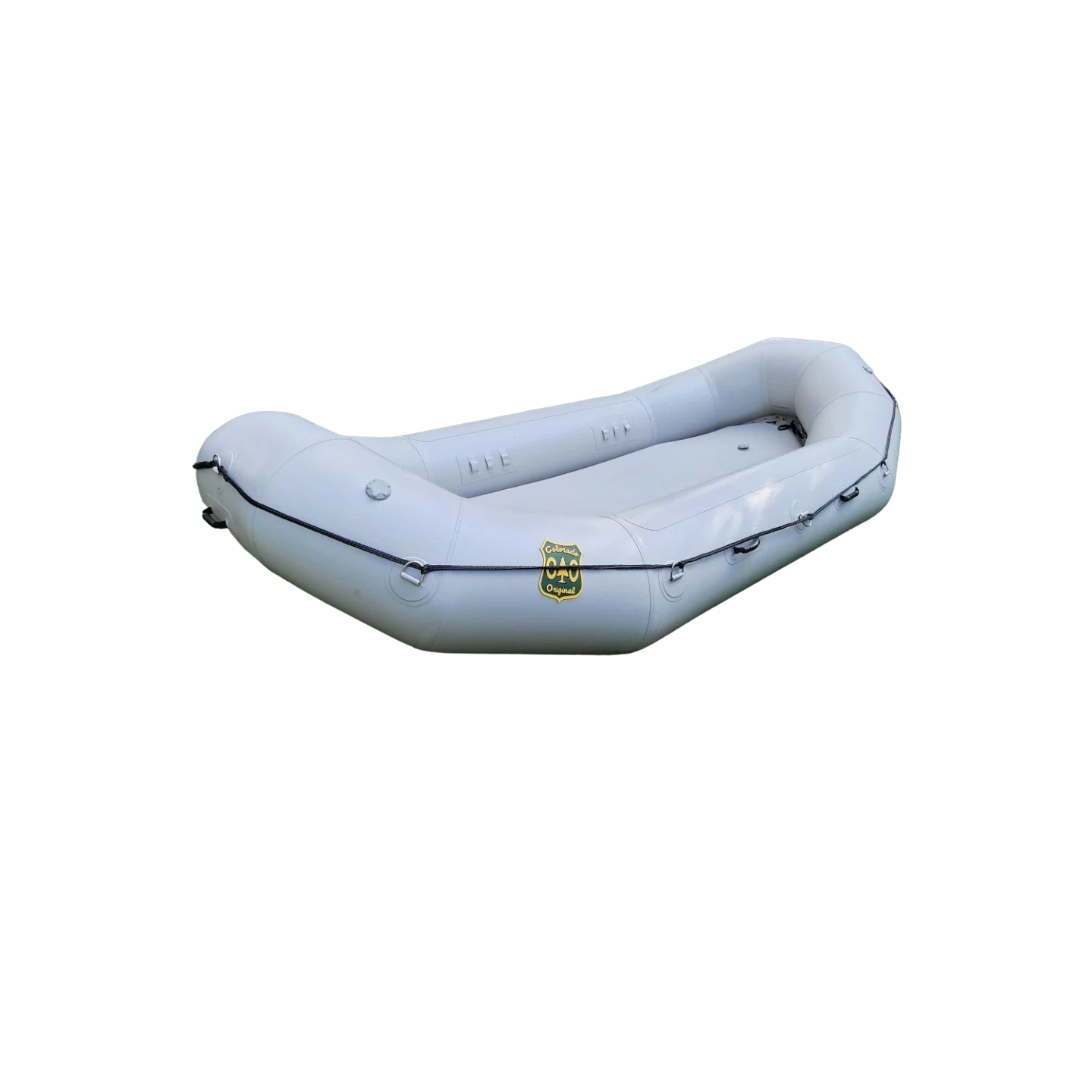

Our 14ft boat is the perfect family boat for overnights. It has ample room for gear, kids and dogs. If your worried about safety we designed this boat to be stable in big water while also maintaining maneuverability. This is the right boat for floating the Colorado no matter what the water level, or big water on the Ark when stability is paramount.

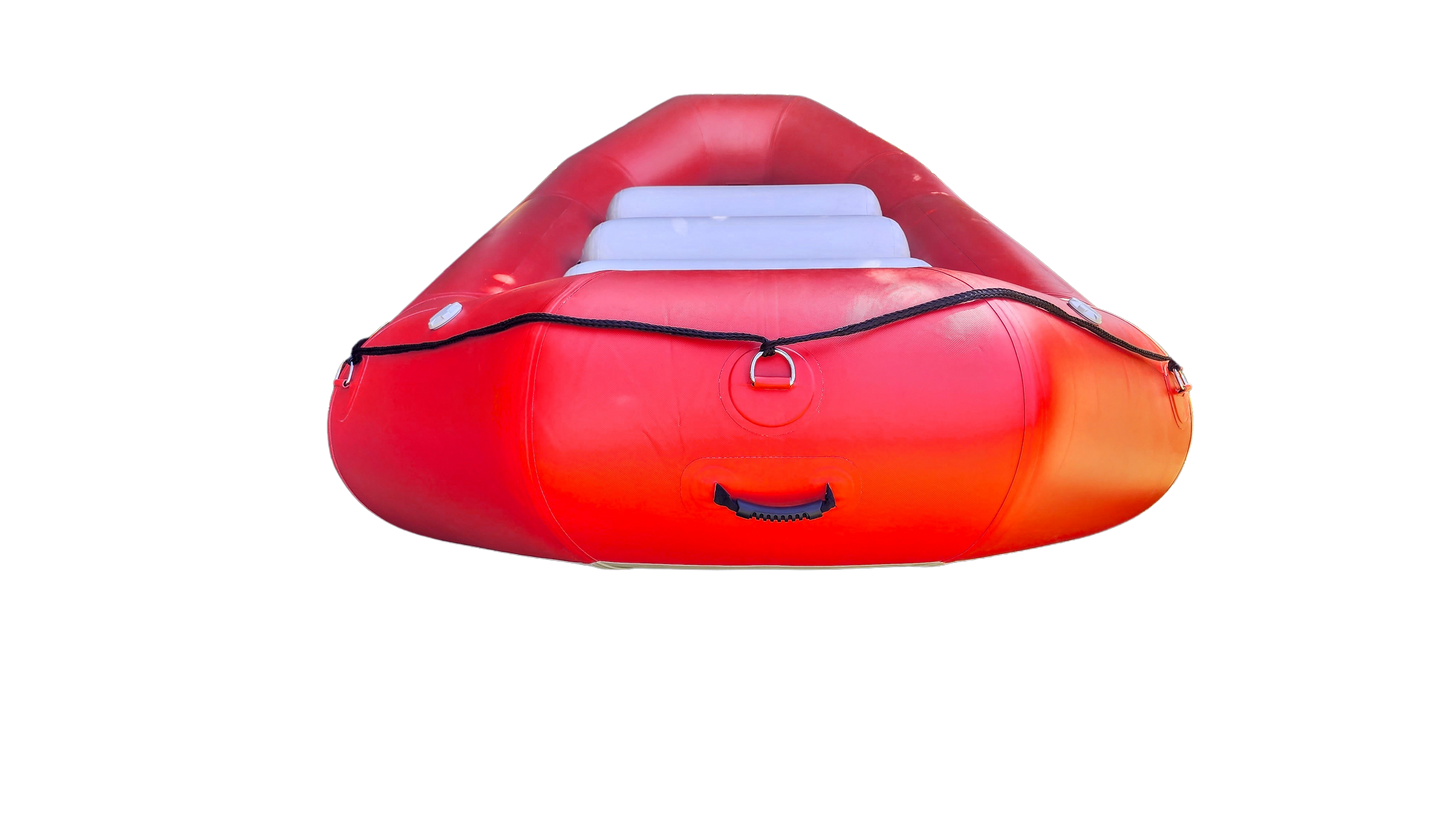

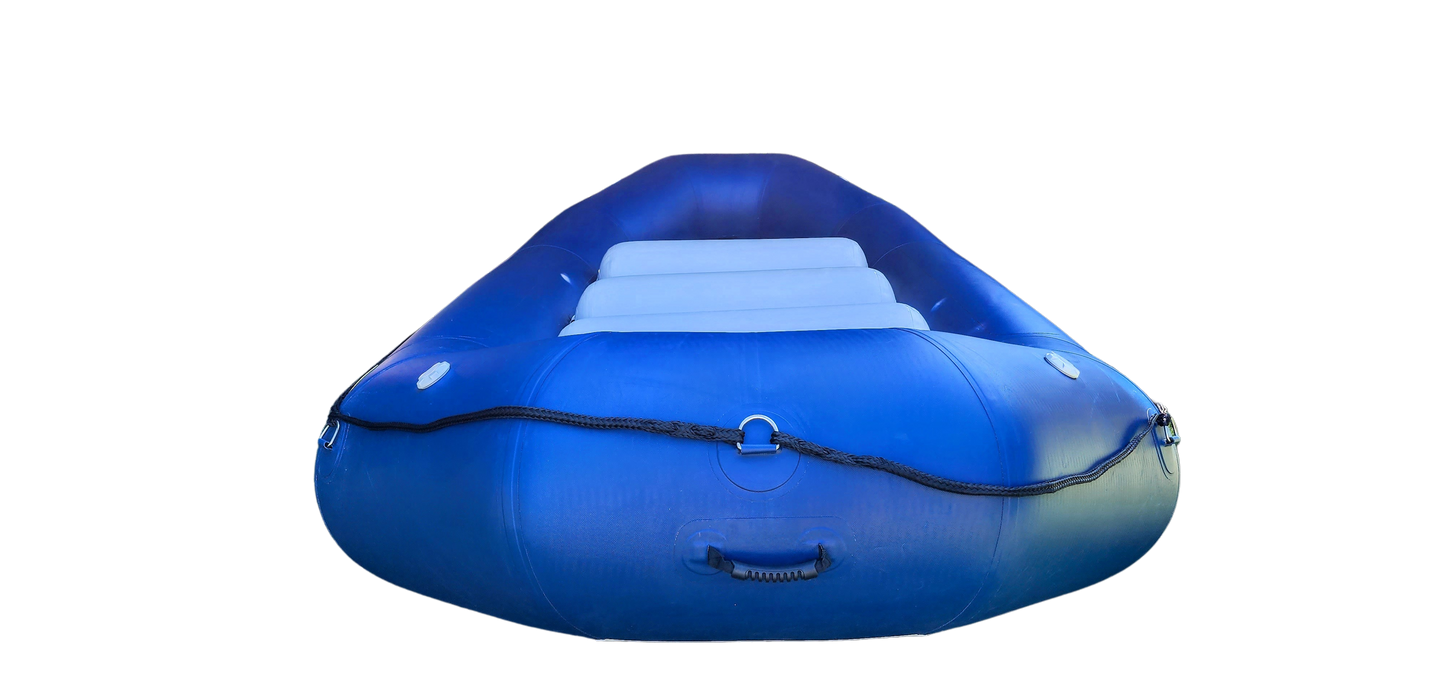

We designed this boat to have a fair amount of rise in the bow and stern. This allows the boat to turn and pivot on a dime, even when carrying enough gear for the whole family. Because of the amount of rise we put into these boats, there is less tube in contact with the river which translates into extra maneuverability whether paddling whitewater or rowing your favorite fishing run. The ideal oar for this boat is a 9.5 ft, although you can certainly get away with a 9ft. or 10ft.

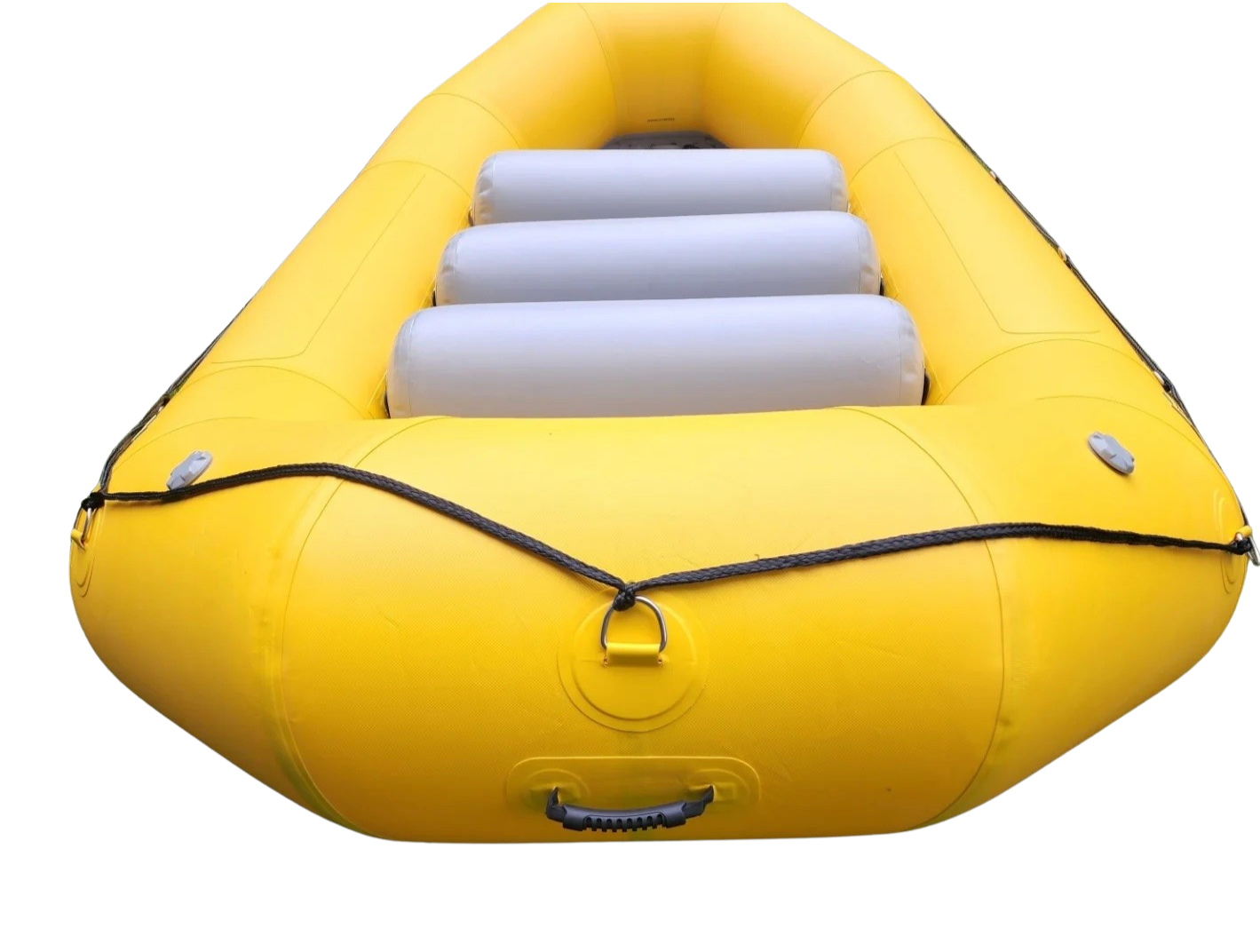

With 19" tubes, you won't notice when it's loaded down and it will float high over shallow riffles when it's not. We redesigned the floor to provide an easily replaceable lace in drop stitch that fills the whole boat and presses tightly against the tubes. our drop stich floor is a significant advance over old style i beams. Our floor can be pumped up as hard as a SUP board so that the need for additional, heavy and costly fishing floors are totally unnecessary. The seams in this boat are all thermo welded, and seam taped inside as well as out, to eliminate any chance of leaks or separation.
3 year commercial warranty
5 year retail warranty
Specs: 12ft 14ft
Tube Dia. 18"(12'6") 19"(13'6")
Tube Mat. 1.2mm 1100d/52oz
Bottom. 1.2mm 1100d/52oz + 1100d/52oz
wear Material
Top wear. 1.2mm 1100d/52oz
patch
Weight. 126lbs(12.5ft) 138(13.5ft)
Thwarts. 2 (12.5ft) 3(13.5ft)
D-rings. 12
Lace-in 6" high pressure drop stitch floor with a max pressure of 15psi.
14ft. Bow and stern kick 31" measured from floor to top of tube
13ft. Bow and stern kick 34" measured from floor to top of tube
Length 12.5ft 13.5ft
Tube diameter. 18" 19"
Exterior Width 74" 82"
Interior width 38" 42"
Max Flat section
on top of tubes 66" 62'"
Interior length 114" 122"
Distance from top of cross tube to floor
12" 14"
Comes with patch kit
includes fabric patches,
glue and valve wrench
Care Instructions
Care Instructions
Our PVC has plenty of uv protectans built in, however direct sun exposure will still shorten the life of your boat.
1. Never store your boat outdoors in direct sun, this will severaly limit the life of your boat. If you must store outdoors please cover your boat with a loose fitting tarp. Canvas, cotton or natural materials are best. They will prevent excessive heat which may also damage your raft.
2. If you roll your raft for indoor storage please be aware that crease marks are natural and most will dissapear after inflation. Please roll your raft losely to allow for some air flow, it will also help if a small amount of air is left in the tubes when rolling.
3. Treat your raft with a conditioner before and after storage. We recomend 3-4 times per year. We like 303 Aerospace Protectant.
4. Wash your raft with a mild soap. Never use harsh chemicals or abrasives.
5. Always make sure your tubes are dry on the interior water build up can cause mold which will deteriorate the fabric. You can use a vacuum to remove water or vapor.
Shipping & Returns
Shipping & Returns
Please contact us reguarding any returns. Returns of unused rafts with all original pakaging will be accepted within 15 days of reciept of original shipment. Shipping charges for returns are responsibility of the buyer. If there is a defect or other warranty issue we will cover return shipping.
(720) 278-6353
ColoradoOriginalRafts.com
owner Adam Groskin
-
Shipping
Prices are calculated based on raft size and weight.
-
Exchanges or Returns
Rafts are heavy and shipping can be substantial. For this reason, we cannot pick up the tab for returns or exchanges, however, shipping will be paid for on our end if there are any Warranty issues with your initial shipment.
